Off Road

» Available in 6’x4′ / 7’x4′ / 7’x5′ or custom
» 749Kg GTM Unbraked
» 1499Kg GTM with optional brakes

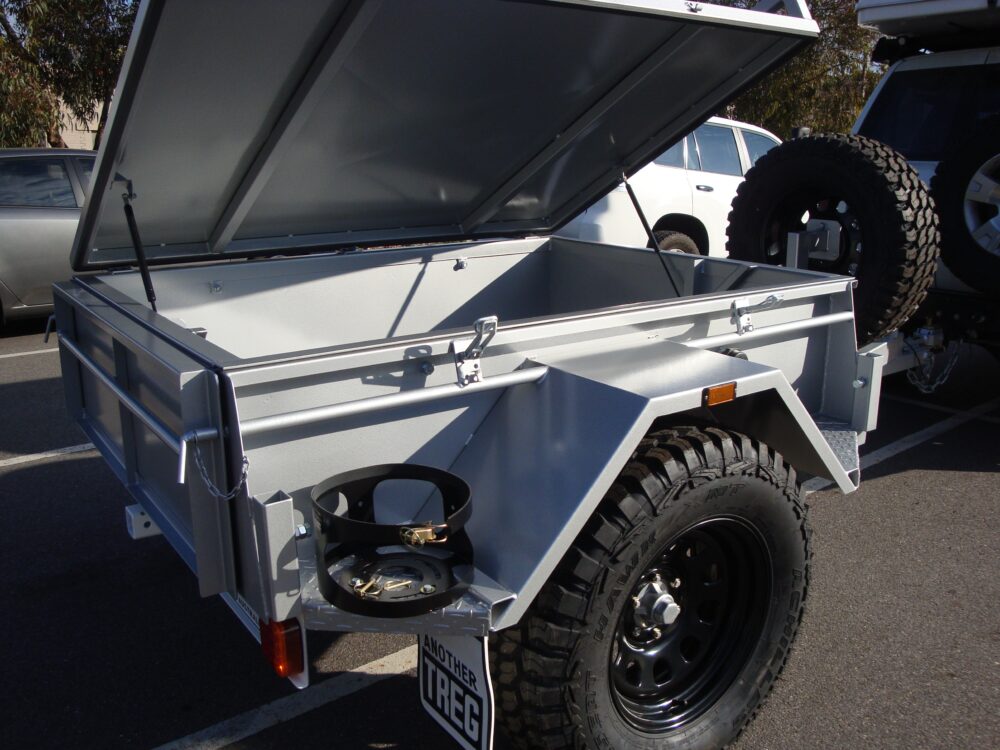

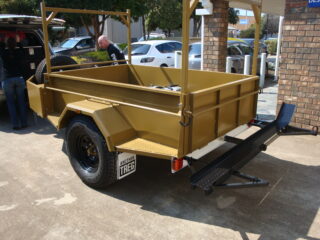

One of our best-seller trailer, the Off Road 1.5 ton is built to last through extreme off-road conditions with the TREG Poly block Coupling.

Ideal for: camping, transporting luggage and equipment, agriculture and mining.

  • “Hammerfinish” Copper (Model stock colour or your own choice)
  • 1.6 mm zinc anneal steel body
  • 500mm sides
  • Zinc anneal smooth plate deck
  • 7 floor supports (Galvanised RHS)
  • TREG poly block coupling
  • HD 50mm duraflex 2.5 ton TREG axle
  • 1500kg “Outback” floating shackle springs
  • High tensile 50 x 50 x 3mm galvanised square tube chassis and cross members
  • Reinforced rear drop down tailgate with chain, fixed front
  • L.E.D. lights protected in 3mm galv. steel channel
  • Side gusseted with 3mm plate & tie rails all around 75 x 50 x 3mm galvanised rect. tube drawbar
  • Heavy duty taper roller bearings (light truck type)
  • 16” 6 stud Land Cruiser rims or hubs to suit any 16” wheel 5 or 6 stud
  • New Off Road tyres (7.50 x 16 x 8ply)
  • 8″ folding jockey wheel

Example Options:

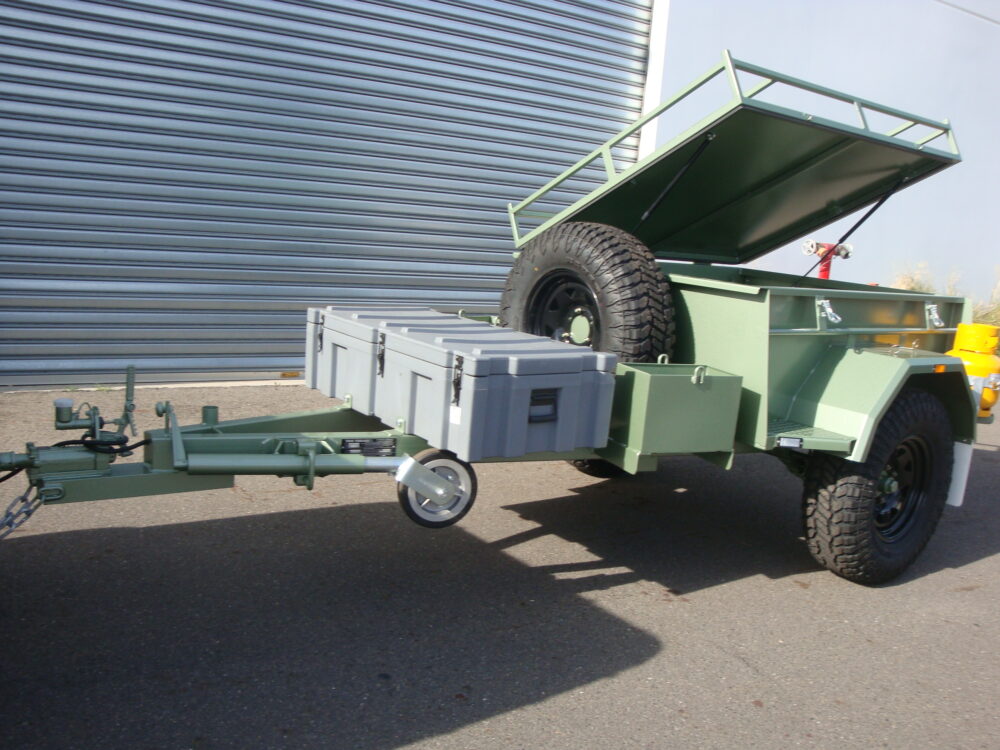

Jerry can holders, Gas bottle holders, Stone guard, Sealed Lid & Tailgate, Mounted Spare Wheel, Toolbox, Folding or Adjustable legs etc.
